4.0.0 FIRMWARE OUT NOW!

23
Ian_JorgensenIan_Jorgensen Wellington, New ZealandPosts: 592
edited April 29 in News

We're very excited today to announce the arrival of our huge 4.0 software update.

Instructional videos and downloads links are at the bottom of this spiel.

Highlights include:

  • Wavetable synthesis, and improved single-cycle waveform playback.
  • Support for MIDI Polyphonic Expression (MPE), and similarly MIDI polyphonic aftertouch. The Deluge can receive MPE from external MIDI controllers that support it, it can record this data, and the internal Deluge synths can respond to it. And this MPE data may also be output again to an external synth.
  • Euclidean sequencing - per row of a clip on the Deluge. This also means that now individual rows within a clip may be set to different lengths.
  • Sequences can be set to play in reverse, or to ping-pong.
  • Synths, kits and songs may be put into folders, and the user can browse these when saving and loading.
  • MIDI input devices (and to a limited extent output devices) may be differentiated and treated separately, so that two devices sending on the same MIDI channel won’t be confused.
  • Improved handling of regular MIDI pitch bend and channel pressure. Adjustable MIDI pitch bend ranges.
  • Sharing presets along with their audio files, with other Deluge users, is now easier.

MPE SUPPORT
This massive release makes the Deluge the first standalone hardware sequencer to offer comprehensive MPE (MIDI Polyphonic Expression) support, allowing you to record, edit and transmit expressive MPE with compatible devices. You can also use external MPE devices to get expressive with the Deluge’s internal synth/sample engine. Tip: combine with the Deluge’s multisample support to bring expression to everything!

EUCLIDEAN SEQUENCING & INDIVIDUAL ROW LENGTH
Euclidean note entry brings an entire new method of  beat and melody creation to the Deluge. Coupled with the ability to now make any row within a kit, any length, this infinitely broadens the scope for new rhythmic variations and ever-evolving melodies.

You can set the length of a row, dial in how many steps you would like to play on that row (automatically divided ‘musically’), and then move those notes horizontally - this becomes not just a new way to make innovative rhythms, but an incredibly versatile performance tool.

PLAY-DIRECTIONS
If being able to set the length of a row wasn’t enough, you can now tell the Deluge what direction (forward, reverse or ping-pong) to play-back those particular notes and not only that, you can have each and every row playing a different direction. Warning: fun.

POLYPHONIC AFTERTOUCH, IMPROVED “MONO” EXPRESSION
In bringing MPE to the Deluge, we at the same time introduced support for good ol’ MIDI polyphonic aftertouch, plus you can now record both pitch bend and channel pressure (aka monophonic aftertouch) into synth, MIDI and CV clips. And, this data now stays with the clip even when you change presets or switch between clip type (e.g. from MIDI to synth etc.).

Previously, synth clips could only record pitch bend, not channel pressure, and CV clips couldn’t record either.

ADJUSTABLE BEND RANGE
The Deluge is no longer stuck with a 1-octave bend range. Now, there’s a global setting under DEFAults -> BEND to set the default bend range. This should default to 12 semitones (1 octave) for all existing users, it will default to the more normal 2 semitones for new users. Anyway, you can go ahead and change it.

WAVETABLE SYNTHESIS, AND IMPROVED SINGLE-CYCLE WAVEFORM PLAYBACK.
How about an entirely new form of synthesis? The Deluge will now support Wavetable files, Ringmod on the Deluge is also totally compatible with Wavetable, you may even put a separate wavetable in each of the two oscillators, with each of their wavetable-positions affecting the resulting sound.

The Deluge has always supported the playback of single-cycle waveforms by loading them as samples. But now, a technically superior option is for these to be played as a wavetable, as the wavetable engine is more fit for this purpose: it is more CPU-efficient, and will produce higher quality sound with less aliasing, particularly with high notes. It also allows the use of ringmod and oscillator sync. The wavetable-position parameter is not available when playing single-cycle waveforms, as there are not multiple cycles to interpolate between.

PRESET & SONG FOLDERS
Our users jumped for joy when we announced this new addition. You can now separate your 1 million presets and songs into folders to make navigation easier!

DIFFERENTIATING MIDI INPUT DEVICES
Now, the Deluge will differentiate between MIDI coming from different hosted USB devices, and MIDI into the input DIN port, and from a connected computer which is hosting the Deluge.

Let’s say you have the Deluge hosting say a Keystep via USB (and that’s through a USB hub), and you’ve actually learned all 16 channels from that Keystep to different synths on the Deluge. Well, then you could connect another USB MIDI device to your hub, and learn those 16 MIDI channels to yet another 16 synths on the Deluge. And whatever MIDI device is plugged into the Deluge’s DIN input will have its 16 channels treated as independent yet again.

IMPROVED MODULATION MATRIX
Lastly, we’ve also improved our modulation matrix! - The feature where the modulation-depth of a source-param pair (or “patch cable”) can itself be modulated by another modulation source – well, previously the Deluge could only handle doing this for one such patch-cable per synth. This limitation has now been removed, and you can do it for as many patch-cables as you want, subject to other existing limitations.

HAVE FUN!

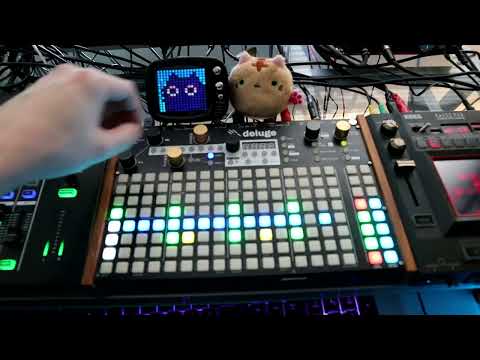

INSTRUCTIONAL VIDEOS

Euclidean Sequencing, play-directions, row length:

Wavetable Synthesis:


MPE:

You can download the new update (free for all users) from here: https://synthstrom.com/product/deluge/#downloads
Place the .bin file on your SD card, make sure there are no other .bin files on there. Put the card back in your Deluge, hold down the shift button and switch on. A spinning animation will display and the firmware will be permanently installed :)

Download our updated manual by Synthdawg
https://synthstrom-audible-deluge.s3.us-east-2.amazonaws.com/Deluge-Guidebook-4p0.pdf

You can download just the changed/added pages
https://synthstrom-audible-deluge.s3.us-east-2.amazonaws.com/Deluge-Guidebook-4p0-edits-only.pdf

Download the updated community guide
https://synthstrom-audible-deluge.s3.us-east-2.amazonaws.com/Deluge-Community-Guide-4p0.pdf

All Deluges ordered from today will ship with the new 4.0 firmware.

Buy a Deluge now $999USD +shipping (receive in 3-5 business days)
https://synthstrom.com/product/deluge/

Post edited by Ian_Jorgensen on
«13

Comments

  • 0
    rezareza los angelesBeta Tester Posts: 303

    woo! congrats on the official release, lots of amazing changes to sit down with.

  • 0
    JDiamondJDiamond Brooklyn, New York Beta Tester Posts: 15

    Congrats and thanks so much to Rohan, Ian and the Deluge team!

  • 0
    Soon_ForgetSoon_Forget USAPosts: 17

    Tis a grand time to be alive!

  • 0
    manateemilitiamanateemilitia Austin, TXPosts: 69

    Thanks for all of your work! I'm really excited to try this out but I got an "Error" message on startup (+shift), and now I get an "Error" every time I turn my Deluge on.

  • 1
    Ian_JorgensenIan_Jorgensen Wellington, New ZealandPosts: 592
    edited April 28

    @manateemilitia said:
    Thanks for all of your work! I'm really excited to try this out but I got an "Error" message on startup (+shift), and now I get an "Error" every time I turn my Deluge on.

    Did you follow these instructions? "Place the .bin file on your SD card, make sure there are no other .bin files on there. Put the card back in your Deluge, hold down the shift button and switch on. A spinning animation will display and the firmware will be permanently installed"

    ie: is it the only bin file on the top directory of the SD?

    Post edited by Ian_Jorgensen on
  • 0
    manateemilitiamanateemilitia Austin, TXPosts: 69

    Thanks for the response, and yes it is—I can try to downgrade a bit later and see if I can do the whole thing over again. Very excited to dive into the new features.

  • 0
    atimchakatimchak Chicago, ILPosts: 26

    Such amazing news THANK YOU Ian and the whole synthestom crew -SOO excited for the upgrade!

  • 0
    luiscriptluiscript MéxicoPosts: 3

    Thank you so much for making deluge even better with this huge update.

    I have noticed that NOISE & OSC SYNC buttons are switched with WAVETABLE buttons. When I press NOISE in the parameter matrix it selects the OSC1 wavetable position and OSC SYNC selects OSC2 wavetable position. Not a big deal, just to know if this happen to anyone else or something is wrong with my update.

  • 0
    phillipadsmithphillipadsmith United StatesBeta Tester Posts: 89

    Congrats. Amazing news!

  • 1
    rezareza los angelesBeta Tester Posts: 303

    @luiscript said:
    Thank you so much for making deluge even better with this huge update.

    I have noticed that NOISE & OSC SYNC buttons are switched with WAVETABLE buttons. When I press NOISE in the parameter matrix it selects the OSC1 wavetable position and OSC SYNC selects OSC2 wavetable position. Not a big deal, just to know if this happen to anyone else or something is wrong with my update.

    you need to change your shortcut settings in the menu, they probably aren't set to 3.0 (or higher if this update updated the highest number possible)

    Ian_Jorgensen
  • 0
    annaluiseannaluise Berlin, GermanyBeta Tester Posts: 19

    Wonderful! Thank you to all of you at Synthstrom! I have been testing the beta and am so happy about these new capabilities! Deluge is a beautiful magical box inviting me every day to get creative...

  • 0
    ElectricGorillaElectricGorilla United States Posts: 1

    Need Help on New Firmware. I just bought one . How do i tell what firmware I have ? I downloaded the new update to my PC There are three files. I m a little confused on one bin ? Do I take all three files load into the one bin file in SD Card ? It seems like these are the kits and synths not the actual update ? What am I missing ?
    Thanks for the help
    Green Luger

  • 1
    rezareza los angelesBeta Tester Posts: 303
    edited April 28

    @ElectricGorilla said:
    Need Help on New Firmware. I just bought one . How do i tell what firmware I have ? I downloaded the new update to my PC There are three files. I m a little confused on one bin ? Do I take all three files load into the one bin file in SD Card ? It seems like these are the kits and synths not the actual update ? What am I missing ?
    Thanks for the help
    Green Luger

    double check u downloaded the 4.0 .bin file in the downloads page. if you open ur sd cards folder, the current firmware will be the only .bin file on the root/main folder ie 3p1p5.bin = firmware 3.1.5

    if u need to update the firmware, delete the old firmware .bin file from the SD card's root folder, and replace it with the newly downloaded 4p0p0 4.0.0 firmware. once u put the SD card back in the deluge hold shift and power on, it should take a minute to update.

    Post edited by reza on
    Ian_Jorgensen
  • 0
    doom0maticdoom0matic FrancePosts: 1

    <3 <3 <3 <3 <3

  • 0
    ttbennittbenni GermanyBeta Tester Posts: 4

    Congrats for publishing this super cool new version 🎉

  • 0
    mcpepemcpepe Marbella, SpainBeta Tester Posts: 95

    I also get the "Error" message when trying to upload. My only .bin file in the root fólder is the 4.0 firmware .bin file.
    What can I do?

  • 4
    rezareza los angelesBeta Tester Posts: 303

    @mcpepe said:
    I also get the "Error" message when trying to upload. My only .bin file in the root fólder is the 4.0 firmware .bin file.
    What can I do?

    any chance you're using mac or ipad? i think sometimes hidden .ds_store files can appear when accessing the sd card from those operating systems, if those files exist on the root maybe it causes problems? did u add any other folders to the root sd card?

    Ian_Jorgensen
  • 0
    SlivizSliviz LondonPosts: 39

    Rohan, Ian this is incredible. The gift that keeps on giving, truly one of the best products and best aftermarket support I have ever seen. Can't wait to try all this out

  • 1
    funkymothersfunkymothers LondonPosts: 48

    Than you very much, Rowan, Ian and everybody at Synthstrom. I am amazed to still be receiving significant updates such as this after so many years. I ordered my Deluge back in 2016 and did not expect active development to continue for half a decade after receiving it!

  • 2
    mcpepemcpepe Marbella, SpainBeta Tester Posts: 95
    edited April 28

    @reza said:

    @mcpepe said:
    I also get the "Error" message when trying to upload. My only .bin file in the root fólder is the 4.0 firmware .bin file.
    What can I do?

    any chance you're using mac or ipad? i think sometimes hidden .ds_store files can appear when accessing the sd card from those operating systems, if those files exist on the root maybe it causes problems? did u add any other folders to the root sd card?

    This may be it. I sometimes use a Mac. Let me see if there are hidden files.

    Edit: Yes! I deleted the hidden files and now the Deluge has been updated correctly. Thanks for the help!

    Post edited by mcpepe on
  • 1
    semarsemar Posts: 29

    A BIG THANK YOU to the Deluge Crew having delivered what promised !
    Such a wonderful and creative instrument :-)
    Deluge forever !!!
    Best regards,
    Sergio

  • 0
    dasMuhdasMuh SwitzerlandBeta Tester Posts: 1

    Also a big "Thank you" from my end <3

    Small input: The link to the main-manual is the same as the one of the community-guide

    Greetings

  • 2
    Michael_R_GrantMichael_R_Grant Bristol, UKBeta Tester Posts: 17
    edited April 28

    Amazing new firmware, guys! One question about folders. If I start moving presets to new folders, will existing songs featuring those presets still work properly?

    Post edited by Michael_R_Grant on
  • 0
    boisnoisboisnois Posts: 15

    Rohan, a big thank you also from me. What wonderful news to wake up to, kinda like the only good news these days....

    one question re midi. I know this wasnt possible under vs3.
    Does the vs4 now pass on the clock from the CLK IN thru to the midi output?
    Thanks

  • 1
    rezzonatorukrezzonatoruk UKPosts: 3

    Awesome update. I've managed to create preset folders but can't find them when browsing. Am I doing something wrong?

  • 0
    sven_blobsven_blob France Beta Tester Posts: 118

    won-der-full as always !!! :p

  • 0
    demosuzkidemosuzki swedemPosts: 2

    congrats and thank you for the continuous improvement. means a lot.

  • 0
    darenagerdarenager Between a rack and a hardware placeBeta Tester Posts: 220

    Big thanks, the new sequencing stuff is great!

  • 0
    tomtobblestoptomtobblestop Portland, Maine, USABeta Tester Posts: 15

    Congrats on the release!

  • 0
    NölkNölk FrancePosts: 8

    Wow !!! Wonderful magic gift. Contrats and thanks !
